K20z3: Pump Gas Dyno Tune

[top dead center]

Setup:
Skunk 2 Header
Buddy Club Exhaust
Injen Cold Air Intake

Otherwise, the car was stock.

Tuned on Hondata Flashpro

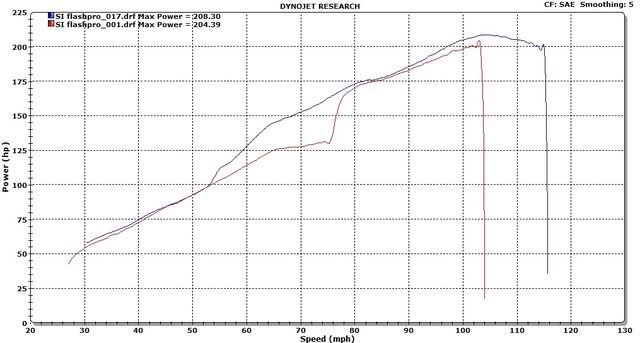

Here is the chart:

The red line is the base run, with the stock ECU, and the blue line is the tuned map. Notice the midrange gains.

[dave99rt]

do you have the chart in RPM?

[keegano]

^ I'm gonna make the guess that red is 8000 and blue is 9000.

[HKYStormFront]

i need to dyno the frontier... just for gits and shiggles

[RHennin]

If it's the standard Flash pro limiter, I believe it's around 8400 or so.

Nice work guys. Along with a whole host of other reasons, and including the responsiveness of this motor to just about anything compared to some cars, I'll be buying a 4 door Civic Si within the next 6 months. Look at the mid-range difference between the two. The more I read about flash-pro, Hondata's new plug in tuner for the K20, the more I like. Fixes the rev hang issues, creates a variable v-tec window dependent on load and throttle position, and has TONS of preset maps for tons of different mods.

[keegano]

(03-22-2010 07:16 PM)RHennin Wrote:  If it's the standard Flash pro limiter, I believe it's around 8400 or so.

Nice work guys. Along with a whole host of other reasons, and including the responsiveness of this motor to just about anything compared to some cars, I'll be buying a 4 door Civic Si within the next 6 months. Look at the mid-range difference between the two. The more I read about flash-pro, Hondata's new plug in tuner for the K20, the more I like. Fixes the rev hang issues, creates a variable v-tec window dependent on load and throttle position, and has TONS of preset maps for tons of different mods.

- standard redline is 8k w/ rev limiter coming in at 8400. that line looks like it's higher up than that.
- rev hang only happened on the '06 models. they fixed it after that.

[top dead center]

Sorry guys. I usually post the RPM chart. Not sure why we didn't this time.

I'll try to get it up tomorrow.

The K20 engines never cease to amaze. They respond so well to mods. I also love to see a Honda with respectable midrange gains.

We're working on a customer car right now that we'll be posting soon too. It's an 2003 RSX-S. We're adding IPS Cams, Supertech Springs and retainers, Hybrid Racing TCT, MDX Injectors, and a 3" exhaust. It will hit the dyno soon, so be looking for 250ish all motor whp numbers soon.

[RHennin]

(03-22-2010 09:08 PM)keegano Wrote:

(03-22-2010 07:16 PM)RHennin Wrote:  If it's the standard Flash pro limiter, I believe it's around 8400 or so.

Nice work guys. Along with a whole host of other reasons, and including the responsiveness of this motor to just about anything compared to some cars, I'll be buying a 4 door Civic Si within the next 6 months. Look at the mid-range difference between the two. The more I read about flash-pro, Hondata's new plug in tuner for the K20, the more I like. Fixes the rev hang issues, creates a variable v-tec window dependent on load and throttle position, and has TONS of preset maps for tons of different mods.

- standard redline is 8k w/ rev limiter coming in at 8400. that line looks like it's higher up than that.
- rev hang only happened on the '06 models. they fixed it after that.

I'm aware. Remember I've driven two already and spent alot of time researching these. Excuse me, the reflash and flashpro switch the redline to 8600.

Rev hang is "said" to have been fixed. Although there are MANY owners that still say it's there and noticeable. See 8thcivic.com and there are plenty that will vouch.

If you want to see some nice oem type upgrades for this car look at the CT Engineering supercharger kit. Similar mpg if driven mildly, easy and complete install w/ parts and 40+ hp and 30 ft/lbs of torque gain.

[top dead center]

I'm not sure how the chart was posted showing speed, but here is the RPM chart:

[93redfox]

(03-22-2010 10:36 PM)RHennin Wrote:  If you want to see some nice oem type upgrades for this car look at the CT Engineering supercharger kit. Similar mpg if driven mildly, easy and complete install w/ parts and 40+ hp and 30 ft/lbs of torque gain.

supercharger is kinda pricey for just 40hp, i'd rather go for all motor like the rsx they're gonna be working on

[RHennin]

(03-23-2010 05:31 PM)93redfox Wrote:

(03-22-2010 10:36 PM)RHennin Wrote:  If you want to see some nice oem type upgrades for this car look at the CT Engineering supercharger kit. Similar mpg if driven mildly, easy and complete install w/ parts and 40+ hp and 30 ft/lbs of torque gain.

supercharger is kinda pricey for just 40hp, i'd rather go for all motor like the rsx they're gonna be working on

The key for this to me is the oem drivability, good increase in power improving overall performance whether it's all out or low rpm driving around town, and reliability. I'd rather have a less intrusive option like the supercharger for this and many other reasons. I honestly think it would be a relatively easy sell to even the average driver if you keep the upgrades basic and to a minimum.

[Spent]

To each their own. For 40 extra whp on a K, I would go with a nice set of Drag Cartel cams and springs. Superchargers are just too prone to heatsoak, especially after back to back runs. You could get 40 extra whp but by the time you shift into 2 or 3rd, now you're down to 30whp. On a k-series, either go all motor or Turbo. People are already exceeding 300whp (cams and higer compression) on daily driven all motor pump gas k series. These motors can support 400-500 whp at the top of it's reliability range on a boosted daily driven application. Obviously more power has been made than 500whp on stock everything but for daily driving, it's not as reliable in my opinion. For the record, there is a company that makes a supercharger kit that supports up to 400whp on pump gas on a K for those wondering.

[evilevo11]

Wow although the peak numbers haven't changed much I'm sure that car is a whole nother animal behind the wheel.

Good job, nice results.

Scorke

[top dead center]

^Thanks.

This is primarily the wife's car and they are looking at a nice set of cams/springs for their baby.

Matt is a member of 8th civic and the following is a text from him regarding his wife's review.

"So, the verdict is in. She's way happy with the job you've done. She had this huge grin and said she loved the way it drove. She said she was shifting at 6k opposed to 3-4K. She said and I quote "that thing was going up way faster than it used to" -- That thing was the tach. Anyhow, she's ecstatic. I drove a little harder on 85 on the way back to the big peach and dammit. Great job! TDC-FTW!"


I thought it was funny. We are glad they are both happy with it and this sort of stuff makes us happy as well.
